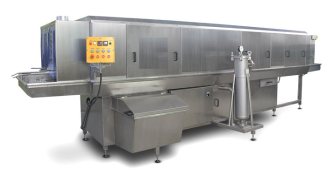

M/MPF container washer

Basic technical parameters

Dimensions (mm): 6000 x 1700 x 1700
Power supply: 400V / 50Hz
Power (electric power supply): 61 kW
Power (steam supply): 13 kW
Bag filter (100 microns)
Mesh filter
Conductometric washing liquid dispenser
Acid resistant pump

Tunnel washer is fitted with slot-type rotating self-cleaning filter with additional bag filter for thorough additional cleaning of washing water. We manufacture these washers for various capacity. Due to modular design, the washer may be additionally fitted with pre-washing and drying modules. The washer is fitted as standard with automatic conductometric dispenser of washing liquids. Closed water circuit.

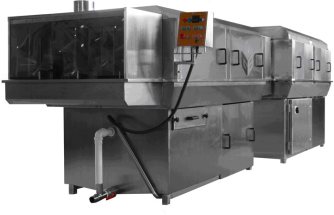

M/MPO container washer with blow module

Basic technical parameters

Dimensions: 5500 x 1700 x 1700
Power supply: 400V / 50Hz
Power (electric power supply): 42 kW
Power (steam supply): 18 kW
Conductometric washing liquid dispenser
Acid resistant pump

Universal tunnel washer for washing containers of various dimensions and shapes, also euro pallets. Basic functionalities performed by a washer are as follows: washing with water plus washing liquid additive, rinsing, drying. It is possible to add a pre-washing module. We manufacture these washers for various capacity. The washer is fitted as standard with automatic conductometric dispenser of washing liquids. Closed water circuit.

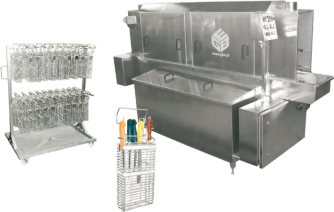

M/NN blade carrier washer

Basic technical parameters

Dimensions: 2500 x 1100 x 1600
Power supply: 400V / 50Hz
Power (electric power supply): 21 kW
Power (steam supply): 3 kW
Conductometric washing liquid dispenser
Trolley for transport of blade carriers

The device is designed for washing cutting knives with baskets. The washer is efficient at work, designed mainly for large meat cutting plants. Adjusted for various types of baskets, controlled washing time and automatic dispensing of washing agents. Closed water circuit.

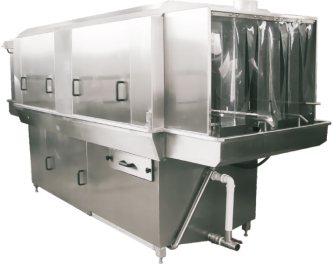

M/MP container washer

Basic technical parameters

Dimensions: 3000 x 1550 x 1700
Power supply: 400V / 50Hz
Power (electric power supply): 32 kW
Power (steam supply): 8 kW
Conductometric washing liquid dispenser
Mesh filter
Acid resistant pump

Basic tunnel washing-rinsing module, which may operate unassisted, and also may work with pre-washing, disinfection and blow module. The washer is fitted as standard with automatic conductometric dispenser of washing liquids. Adjusted for washing containers of various shapes and dimentions, as well as pallets.


Stuffing trolley washer

Basic technical parameters

Dimensions: 3500 x 1500 x 2200
Power supply: 400V / 50Hz
Power (electric power supply): 32 kW
Power (steam supply): 8 kW
Conductometric washing liquid dispenser
Rotating wash pipe
Mesh filter
Acid resistant pump
Closed washing water circuit

Chamber-type washer adapted to washing stuffing trolleys of various capacity. Controlled washing and rinsing time, operating temperature programming, automatic dispensing of washing agents as standard. Various variants of washing water heating (electric, steam). Closed water circuit.


Big-box container washer

Basic technical parameters

Dimensions: 4500 x 2000 x 2800
Power supply: 400V / 50Hz
Power (electric power supply): 32 kW
Acid resistant pump
Weight: 1200 kg
Rotating wash pipe
Conductometric washing liquid dispenser
Closed water circuit

Chamber washer adapted to washing of Big-Box containers (box pallets) of various shapes and dimensions. Controlled washing and rinsing time, operating temperature programming, automatic dispensing of washing agents as standard. Various variants of washing water heating (electric, steam). Closed water circuit.

Presentation


M/MPD washer for poultry transport containers

Basic technical parameters

Dimensions: 4000 x 1550 x 1700
Power supply: 400V / 50Hz
Power (electric power supply): 32 kW
Power (steam supply): 8 kW
Slotted screen
Conductometric washing liquid dispenser
Acid resistant pump

This type of washer is designed for washing containers for transport of live poultry. Due to large number of impurities in these containers, a device is fitted with slotted rotating and self-cleaning screen. Washing the container takes place in the tunnel as fully automatic. Capacity meets the needs of customer.


Smoking stick washer

Basic technical parameters

Dimensions: 1700 x 750 x 1200
Power supply: 400V / 50Hz
Power (electric power supply): 0,25 kW
IP65 electric protection
Weight: 180 kg

Drum-type washer adapted to type of smoking stick used by the customer. 300 smoking stick may be washed at a time. Simple and safe operation.


Smoking trolley washer

Basic technical parameters

Dimensions: 2500 x 2500 x 2500
Power supply: 400V / 50Hz
Power (electric power supply): 31 kW
Power (steam supply): 7 kW
Loading: 6 Z-type trolleys or 5 H-type trolleys
Acid resistant pump
Rotating platform

A washer is designed for washing both H and Z type of trolleys. 6 Z-type trolleys or 5 H-type trolleys may be washed at a time. Trolleys are being washed on a rotating platform, protected against overturn. Different options for heating, automatic dispensing of washing agent, closed water circuit.


Small M/MM washer

Basic technical parameters

Dimensions: 2500 x 1000 x 1500
Power supply: 400V / 50Hz
Power (electric heating): 22,5 kW
Power (steam heating): 4,2 kW
Conductometric washing liquid dispenser
Mesh filter
Acid resistant pump

M/MW bucket washer

Basic technical parameters

Dimensions: 2500 x 1000 x 1500
Power supply: 400V / 50Hz
Power (electric heating): 22,5 kW
Power (steam heating): 4,2 kW
Conductometric washing liquid dispenser
Mesh filter
Acid resistant pump

M/MPW bucket lid washer

Basic technical parameters

Dimensions: 6000 x 900 x 1500
Power supply: 400V / 50Hz
Power (electric heating): 38,5 kW
Power (steam heating): 14,5 kW
Conductometric washing liquid dispenser
Mesh filter
Acid resistant pump

M/MB barrel washer

Basic technical parameters

Dimensions: 2500 x 2500 x 1500
Power supply: 400V / 50Hz
Power (electric heating): 22,5 kW
Power (steam heating): 4,2 kW
Conductometric washing liquid dispenser
Mesh filter
Acid resistant pump
